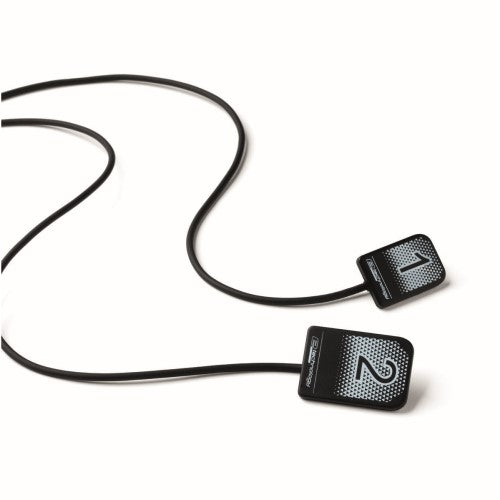

MyRay - ZEN-X E Sensors

Zen-X E. The Enhanced sensor that takes performance in your practice to the next level. High resolution, extreme user-friendliness and maximum patient comfort. Optimise work with the new Zen-X E intraoral sensor. Thin and comfortable for the patient, easy to handle for dentists and assistants. High quality images - even at low X-ray doses - ensure clear diagnosis and effective treatment. Discover the features that allow Zen-X E to deliver an improved patient experience and smoother workflows. So tiny. So great.

ZEN-X E Brochure

ZEN X E Size 1
External dimensions (mm) - 38.5 x 25
Thickness (mm) - 4.5
Pixel matrix - 1500 x 1000
Pixel size (μm) - 20
Max. resolution (lp/mm) - 25
Grey level depth - 16-bit acquisition - max 65,535 grey levels
Sensor technology - APS CMOS
Scintillator technology - Direct deposition CsI (Caesium Iodide)
Case protection rating - IP68 (Guaranteed against liquid or dust infiltration)

ZEN X E Size 2
External dimensions (mm) - 45 x 31.6
Thickness (mm) - 4.5
Pixel matrix - 1800 x 1300
Pixel size (μm) - 20
Max. resolution (lp/mm) - 25
Grey level depth - 16-bit acquisition - max 65,535 grey levels
Sensor technology - APS CMOS
Scintillator technology - Direct deposition CsI (Caesium Iodide)
Case protection rating - IP68 (Guaranteed against liquid or dust infiltration)
